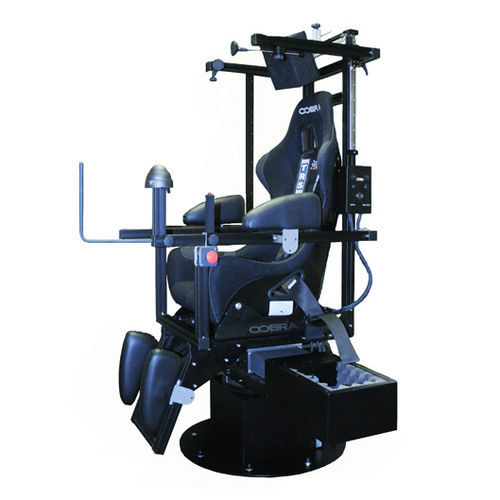

Rotary chair GigaTorque

Gigatorque is a rotary chair with a minicentrifugal possibility. In addition to possibilities offered by Minitorque, Gigatorque allows to run otolith tests. The patient can be moved from -5 to +5 cm from the axis of rotation. This lateral displacement allows to set the left or right otolith organ over the center of rotation. This displacement is controlled by software and electronically adjusted during the rotation of the seat. Two kind of lateral movements can be done: a linear or a sinusoidal movement. When spinning off yaw axis, centripetal acceleration stimulates differently both otolith organs and results in a perception of tilt for the patient. This reaction can be acquired by a eye torsion detection system or a subjective vertical test. Accessories 56 contacts slip rings for ENG, VNG, video surveillance, patient stop button, ocular fixation light,... Operator emergency switch Patient stop button Fixation light Head fixation system Specific desk for the operator Technical specification Motor torque: 120Nm Maintenance free rotation motor Sinus frequency: 0.001 to 10 Hz Sinus amplitude: 0 to 65000° Sinus damping: 0 to 100% Velocity: 0 to 450°/s Acceleration: 0 to 240°/s² Position: 0 to 360° Minicentrifuge: -5 to +5 cm Connection: NAC Maximum patient's weight: 150 kg Weight (without patient): 400 kg Power supply: 3x400V+N+E AC 50Hz
