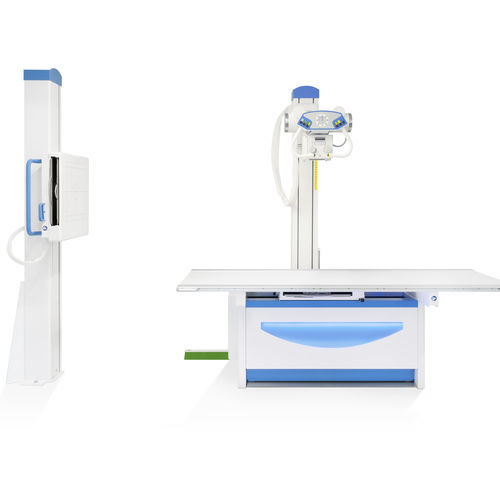

Radiography system OKS 1000

digitalfor multipurpose radiographywith table

The Bucky System OKS 1000 X-ray system solution consists of several high-quality components that make it a universal and indispensable X-ray system for X-ray diagnostics in the private practice sector. Exposure table with floating table top Horizontally movable, integrated column stand Table top braking by means of foot switch Automatic guidance of the grid drawer Simple positioning of patients with restricted mobility Installation of the X-ray generator in the bucky table Cable-free & space-saving solution for the smallest rooms With the optional OKS W100 grid wall unit, the universal X-ray system is suitable for X-ray diagnostics from head to toe. Technical data The Bucky System OKS 1000 X-ray system solution requires a minimum room size of 2000 mm x 3980 mm. Patient table Table height: 750 mm Surface for exposures: 2016 x 560 mm² Length: 2200 mm (2000 mm) Width: 810 mm Longitudinal displacement: Left 600 mm / Right 500 mm Transverse displacement: ± 120 mm Central beam above the floor: 330 - 1900 mm Vertical stand Height: 2270 mm Travel range vertical central beam: 380 - 1900 mm Stand with beam support arm Height: 2275 mm X-ray beam rotation: ± 110° Horizontal travel range: 1230 mm Vertical travel range: 330 - 1900 mm Telescoping: ± 72 mm Swivel range: ± 90
