CAD/CAM milling machine CC COOL
dentalfor ceramicsfor zirconia

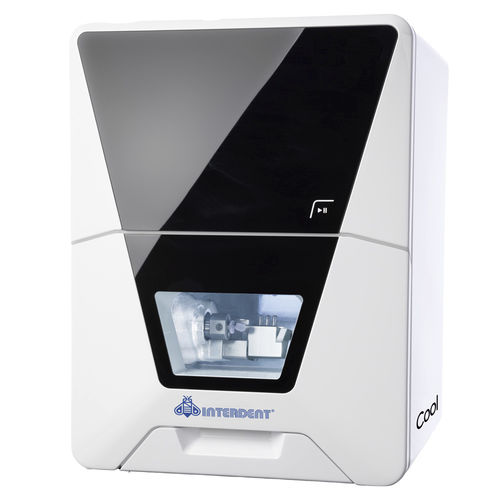

CAD/CAM milling machine - CC COOL - Interdent - dental / for ceramics / for zirconia
CAD/CAM milling machine - CC COOL - Interdent - dental / for ceramics / for zirconia
CAD/CAM milling machine - CC COOL - Interdent - dental / for ceramics / for zirconia - image - 2
CAD/CAM milling machine - CC COOL - Interdent - dental / for ceramics / for zirconia - image - 3
CAD/CAM milling machine - CC COOL - Interdent - dental / for ceramics / for zirconia - image - 4
Add to favorites
Compare this product


Characteristics

Type
CAD/CAM
Applications
dental
Designed for
for dental wax, for zirconia, for dental composites, for ceramics
Number of axes
4-axis
Number of spindles
spindle
Machining type
dry machining, wet machining
Configuration
compact
Number of tool stations
6 tools
Spindle speed

60,000 rpm
(376,991 rad.min-1)

Power

800 W

Height

490 mm
(19.29 in)

Depth

370 mm, 420 mm
(14.57 in, 16.54 in)

Weight

28 kg
(61.73 lb)

Description

4-axis milling unit for wet and dry machining of blocks for chairside production and with CAM Software included. CC Cool milling unit is due to the compact design, lightweight and no use of compressed air the best economical solution for dental practices. It processes materials from PMMA to glass ceramics. Main motor: High-frequency spindle with electromechanical tool change (Germany) The CC Cool has a holder and an AIRTOOL. Operation without the use of compressed air with the innovative AIRTOOL. Simple operation with the integrated Interdent dental CAM software featuring DIRECTMILL technology – no license fees payable. Thanks to PUREWATER Technology, no grinding additives are required – which means trouble-free disposal and lower running costs. Advantages: Mills almost all materials up to 45 mm in length including glass ceramics, composites, zirconium oxide and plastics in block format. Easy entry into in-house production. Integrated CAM software for immediate workflow (unpack, switch on and start milling) with maximum freedom in the choice of materials and suitable for all CAD software. Quick and easy switch between wet grinding and optional dry milling. Multi-compartment for cooling liquid tank or optional dry milling container. The PUREWATER Technology ensures that the closed liquid circuit in the machine requires no grinding additives. For you, this means easy disposal and even lower running costs. The optional dry container enables you to mill materials such as zirconia, PMMA and various composites with no cooling water or compressed air.
