CAD/CAM milling machine CC newTrendy+
dentalfor zirconiafor CoCr

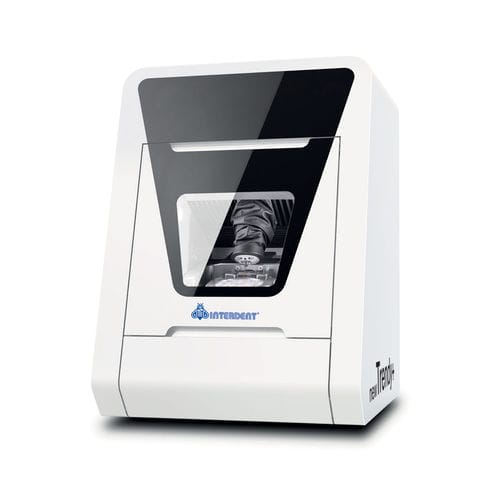

CAD/CAM milling machine - CC newTrendy+ - Interdent - dental / for zirconia / for CoCr
CAD/CAM milling machine - CC newTrendy+ - Interdent - dental / for zirconia / for CoCr
Add to favorites
Compare this product


Characteristics

Type
CAD/CAM
Applications
dental
Designed for
for dental wax, for zirconia, for dental composites, for CoCr, for dental plaster
Number of axes
5-axis
Number of spindles
spindle
Machining type
dry machining
Configuration
benchtop
Number of tool stations
16 tools
Spindle speed

60,000 rpm
(376,991 rad.min-1)

Power

820 W

Height

630 mm, 711 mm
(24.8 in, 27.99 in)

Depth

550 mm
(21.65 in)

Weight

91 kg
(200.62 lb)

Description

CC newTrendy+ is a 5-axes milling unit for dry milling with an all-new look, and an 60 % more powerful spindle! That means you can always go all out when milling, making it much easier to machine tough materials like cobalt-chrome. Thanks to its proven reliability, the CC newTrendy+ is a true driver of performance in any laboratory. High-frequency spindle, synchronous with pneumatic tool clamping – sealing air to prevent debris from entering. CC newTrendy+ has a holder for up to 16 tools of diameter Ø 3 mm with maximum length 40 mm. It can process discs up to a thickness of 40 mm. Two particularly useful features are the DIRECTDISC Technology for single-handed, tool-free disc fixation, and an integrated ioniser that neutralises most of the static charge of plastic chips – practically eliminating your cleaning work. Thanks to its highly stable machine bed structure, made of a solid cast body, the machine generates less vibration and delivers first-class surface quality. Keeping it all together - Tools and material blanks are stored in the machine’s practical accessory drawer, so they are always close at hand. An Administrated Tool Board for milling tools is also integrated into the drawer. Its numbered slots are managed using the DENTALCAM software, creating an active tool pool of a total of 30 tools. Advantages: 3 μm repetition accuracy. DIRECTDISC Technology for tool-free disc fixation – insert your workpieces in seconds. Webcam in the working chamber for remote monitoring and service. Ioniser and improved air circulation for easy machine cleaning. Less vibration for first-class surface quality.
