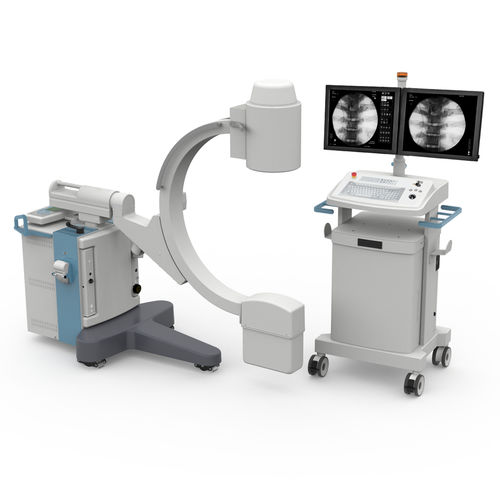

Mobile C-arm RADIUS DFG

with video column

The top unit of our 5kW C-arm range: all what you need at a glance and with an affordable price. New software with modular configurations, from the base one to the top one even after-sale. Available with 9” Image Intensifier and rotating anode monoblock (5 kW). HCF Fluoroscopy and Pulsed Fluorography included Available, as well, a 15 kW power model. Membrane keyboard with alphanumeric touch screen LCD display for all the parameters and error messages. Keyboard can be rotated of ± 60°. Drive handle for C-arm orientation and rear wheels lock. Thermal dosimetric printer, available as option when DAP chamber is present. 9” Image Intensifier. Laser device available on request. Possibility to choose between 5 or 15 kW power. Two 19” B/W monitors on trolley. Possibility to choose base colour monitors instead of standard ones. Display station with double monitor and software with modular configurations. Software Standard Hard disk: 250 GB (110.000 images). Available, on request, superior hard disks. “Measure “and “Cine” packages included in standard configuration “DSA” package: optional DICOM packages, optional: Verify (SCU/SCP), Storage (SCU), Print, Worklist (SCU), CDR/DVD, Query/Retrieve (SCU), MPPS (CPU), Storage Commitment (SCU), Dicom Dose Structured Report
