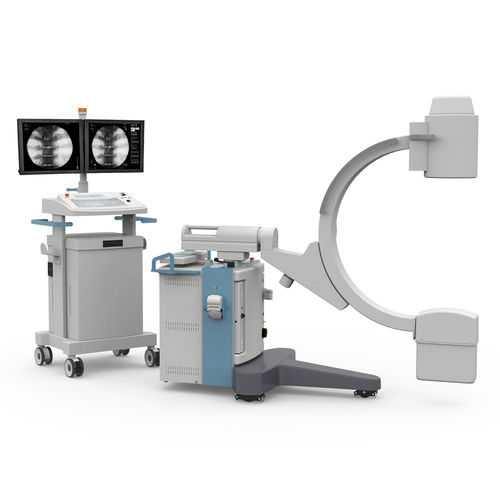

Mobile C-arm RADIUS AFG

with video column

Highly reliable, tough and enduring Mobile System for surgical fluoroscopy. Designed to grant the best performances with the maximum affordability. New software with modular configurations, from the base one to the top one even after-sale. Available with 9” Image Intensifier and with stationary anode monoblock (3.5 kW) or rotating anode monoblock (5 kW). Membrane keyboard with alphanumeric touch screen LCD display for all the parameters and error messages. Keyboard can be rotated of ± 60°. Drive handle for C-arm orientation and rear wheels lock. Thermal dosimetric printer, available as option when DAP chamber is present. 9” Image Intensifier. Laser device available on request. Possibility to choose between 3,5 or 5 kW power. Two 19” B/W monitors on trolley. Possibility to choose base colour monitors instead of standard ones. Display station with double monitor and software with modular configurations. Software Standard Hard disk: 250 GB (110.000 images). Available, on request, superior hard disks. “Measure “and “Cine” packages included in standard configuration “DSA” package: optional DICOM packages, optional: Verify (SCU/SCP), Storage (SCU), Print, Worklist (SCU), CDR/DVD, Query/Retrieve (SCU), MPPS (CPU), Storage Commitment (SCU), Dicom Dose Structured Report
