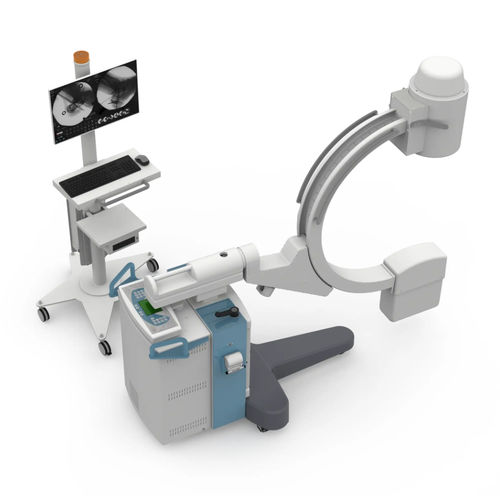

Mobile C-arm RADIUS DIM

with video column

Easy to handle Mobile System. Available with: 9” Image Intensifier Stationary anode monoblock (3,5 kW) or rotating anode monoblock (5 kW) One 24” LCD monitor on trolley as standard. (Touch screen monitor on request) Two 19” Monitors on trolley, instead of standard solo monitor model One 24” LCD monitor on trolley (touch screen version available on request) Membrane keyboard with alphanumeric touch screen LCD display for all the parameters and error messages. Keyboard can be rotated of ± 60° Drive handle for C-arm orientation and rear wheels lock Thermal dosimetric printer, available as option when DAP chamber is present 9” Image Intensifier. Laser device available on request Possibility to choose between 3,5 or 5 kW monoblock power Software Standard Hard disk: 128 GB (55.000 images). Available, on request, a superior hard disk. “Measure “ package included in standard configuration DICOM packages, optional: Verify, Storage, Print, Worklist, CD/DVD, Query/Retrieve, MPPS, Storage Commitment, Dicom Dose Structured Report
