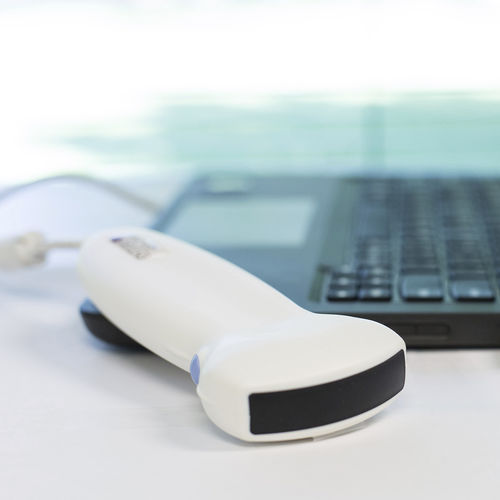

Hand-held ultrasound system SiMPLi GP

for gynecological and obstetric ultrasound imagingfor abdominal and pelvic ultrasound imagingfor urology ultrasound imaging

Point-of-Care USB Ultrasound for General Purpose Imaging Ready for user-friendly ultrasound at the patient bedside? Simply connect the USB probe cable directly to your Windows laptop or tablet and you instantly have a lightweight, handheld and portable ultrasound imaging system for all of your point-of-care imaging needs. SiMPLiTM Series Point-of-Care USB Ultrasound General Purpose, Abdominal Imaging Applications eFAST Abdominal Urology Fetal OB/GYN MSK Pelvis USB Ultrasound Probe Specifications Model NameGP-C01, Medical Model Number99-7903 Depth Range1-21 cm FocusDynamic over full depth range Bandwidth3.5-7.5 MHz Scan Angle60° Patient Contact49 mm CableUSB 2.0, 2 meter (5 meter opt.) Physical Dimensions150 mm x 62 mm Weight110 grams Imaging Features2D, curved array form factor, color flow imaging, lightweight transducer with flexible cable System RequirementsOS: Windows 7, 8, 10 Processor / RAM: 2 GHz / 4 GB
