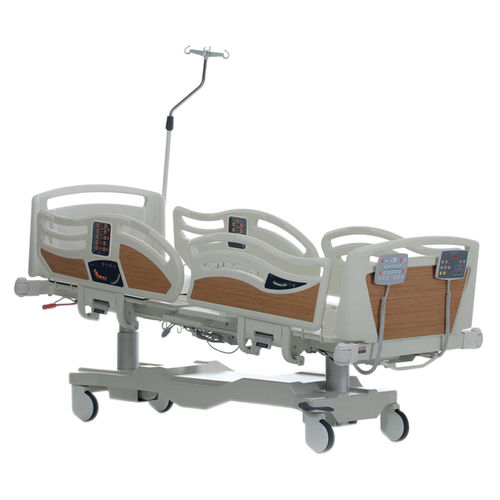

Medical bed FAULTLESS - 3500WS

electricheight-adjustableTrendelenburg

DETAILS • Elektrical operated backrest, height and legrest adjustment. • Electrical operated trendelenburg , reverse trendelenburg, fowler and vasculer position. • Nurse control unit. • Auto-CPR and manuel CPR. • Retracting backrest and legrest. • Hygenic design (PP), lockable and tuck away side rails. • Profile frame with easy removable ABS plastic covers. • Removable head and foot ends. • Central lockable castors. • Electrostatic painted metal frame. • Height adjustable I.V. stand • Plastic crash bumpers. • Battery backup. • Comprehensive range of accessories avaliable. • Angle gauge for back. • Cardiac chair position with one button • Shock position with one button. • Bed exit position with one button. • Dual sided control panel on side- rails. • Bed extension position 200 mm. • Linen holder. • Anti-static castor. (O) • Grounding socket. • Distance between side rail and head board max. 58mm. • Underbed light. (O) • Cable holder. • Weight scale; zemic H8C-C3-500kg,3B6-SC sensitivity: 0,5 KV and 0,1 KG patient weight memory 10pcs, patient exit alarm, extra loading alarm. • Twin castors. (O) • Lifting Pole.(O) • Patient handset.(O) DIMENSIONS • Overall Length: 2160 mm • Overall width: 990 mm • Height Range: 480-850 mm • Trendelenburg (Max.): 16 ⁰ • Reverse Trendelenburg (Max.):16⁰ • Backrest Angle (Max.): 78 ⁰ • Legrest Angle (Max.): 34⁰ • Castor diameter: 150 mm • Backrest sliding (Max.): 120 mm • Legrest sliding (max.): 85 mm MOTION DETAILS BACK MOTION FOOT MOVEMENT BACK-FOOT MOVEMENT LİFT STRAIGHT TRENDELENBURG
