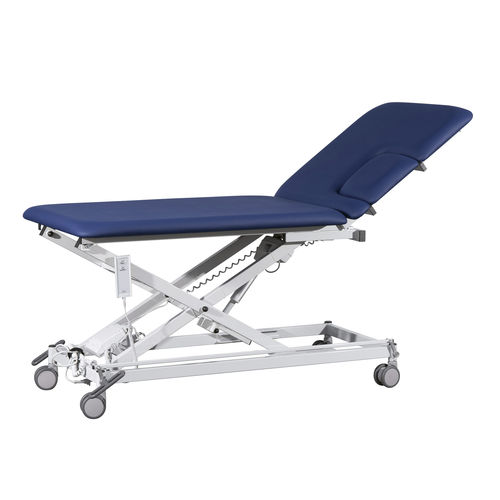

Cardiology examination couch Exadoc Cardio

electricwith adjustable backrestheight-adjustable

- Cardio-cutout incl. cushion insert - Head section electrically adjustable from 0° to +35° - Head section dimensions: 80 x 70 cm, cutout 30 x 30 cm - Central brake system The Exadoc Cardio examination couch has been specially designed to meet the needs of cardiological practices. The head section has been extended and provided with an echo cut-out on the left side at heart level. Thanks to the large height adjustment range, the medical team can perform the examinations in an ergonomically adapted manner. · Lying surface: 80 x 200 cm · Under-couch clearance: 13 cm · Height adjustment: 44 – 95 cm with integrated safety lock · Lifting and propulsion system based on the principle of integrated safety · Safe working load: 210 kg · Individually lockable electrical functions · Stable chassis with Linak actuators · 100 mm clinic double roller system with central brake · Magnetic hand control The currently delivered model of the ECG (electrocardiogram) couch has slightly modified elements, such as the hand switch and the motor system (control box and motor). Thus, the new version differs visually from the product images shown here. The final product changes visually due to optional equipment (to be found in the “Extra equipment/optional” section on our website), such as side rails. If you have any questions regarding an order, please do not hesitate to contact us.
