Surgical light battery IL-2232

compact

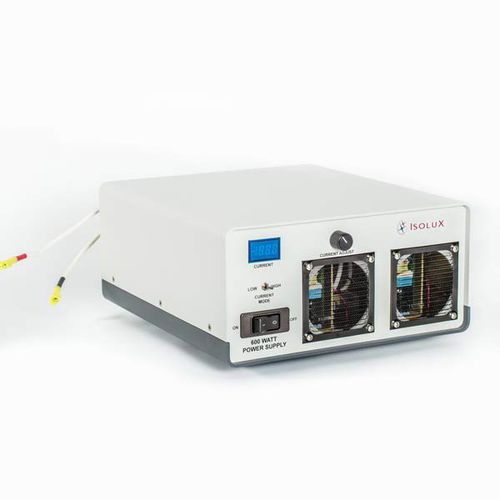

High Performance 600 Watt Power Supply For DC Xenon Short Arc Lamps. The Isolux IL-2232 Variable Xenon Power Supply is a universal input, power factor corrected, current and power regulated power supply adjustable from 18 to 45 Amps. With a voltage range from 12 to 24 VDC, it provides a single source for powering any Xenon lamp up to 600 watts. The state of the art power supply design provides for high technical performance in a compact unit. Its high efficiency (>85%) coupled with forced air cooling and a novel conductive cooling method provides for a much cooler operation than competitive products (typically < 55 °C heat sink maximum temperature). Thereby, providing for a much more reliable operation, even at high ambient temperatures. When used in conjunction with an Isolux Xenon Arc Lamp Module or Housing, it provides for a complete bench top Arc Lamp System for many applications. 600w Variable Power Supply Features Features: Universal input—no jumpers needed Power factor corrected Unique power controls Works with all Xenon short arc lamps Built in circuit breaker Over temperature control Large operating range 600 w The Applications for a 600w Xenon Power Supply are ideal for use in the following environments: Medical and Endoscopy Surgical Procedures Photo Optic Lighting Fiber Optic Lighting
