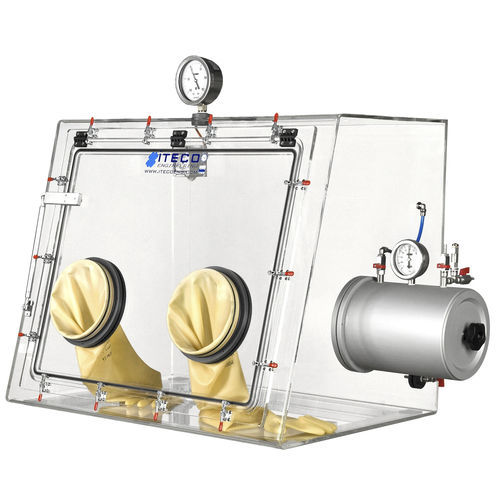

Glove Box mod. EL202 Basic:
The glove box is made to work in positive pressure (Suction kit is necessary to work in negative pressure)
Structure:
Monolithic structure in PMMA with the front wall tilted.
Front wall with n.2 flanges and n. 2 gloves; front wall can be opened towards the high, opening size 700x550mm (WxH).
Right side wall with installed one Air Lock made in aluminium anticorodal alloy, internal dim. mm 186 x 240 L, equipped with two doors
o - Output filter P3 type.
o - Pressure gauge for direct control of the pressure in the working chamber.
o - Pressure gauge for direct control of the pressure in the Air Lock.
o - Overpressure safety valve with absolute filter.
Services:
n°2 fluid passage on the working chamber with ball valve and connection for rubber hoose.
n° 2 fluid passages in the Air Lock.
n° 1 cable passage with four positions.
Dimensional data:
Working area dimensions (WxDxH): 900x650x750mm
Overall dimensions (WxDxH): 1250x650x950mm Weight: 45 Kgs
::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
OTHER MODEL:
Glove Box mod. EL 202 F Basic:
The glove box is made to work in negative pressure
