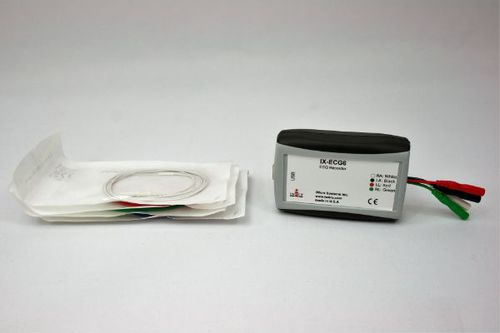

6-channel veterinary ECG IX-ECG-SA

for small animalsUSB

Small Animal 6 Lead ECG System The IX-ECG-SA system is optimized for measuring small animal ECG. The IX-ECG-SA system includes: IX-ECG6 recorder 4 x C-ISO-PN: a set of 10 platinum needle electrodes. LabScribe ECG Analysis module The iWorx 6lead ECG recorder enables accurate and reliable ECG analysis of resting and exercising humans or animals. Measuring 6 ECG leads simultaneously, this compact and lightweight ECG recorder connects to and is powered by a USB port on any Windows or Macintosh computer. Data is recorded and analyzed with iWorx advanced LabScribe ECG Software Module. Technote: Here is an appnote on using the IX-ECG-SA for recording 6 lead Rat ECG. Heart Rate Variability Kubios HRV – Heart Rate Variability Analysis Software is an advanced tool for studying the variability of heart beat intervals. Data can be exported from LabScribe using the edf export option and then imported into Kubios HRV for analysis, as shown in this technote Specifications Analog Inputs4 Electrodes: RA,LA,RL,LL Input Range2400mV, 1200mV, 800mV, 400mV, 200mV, 100mV, 50mV, 25mV, 12mV
