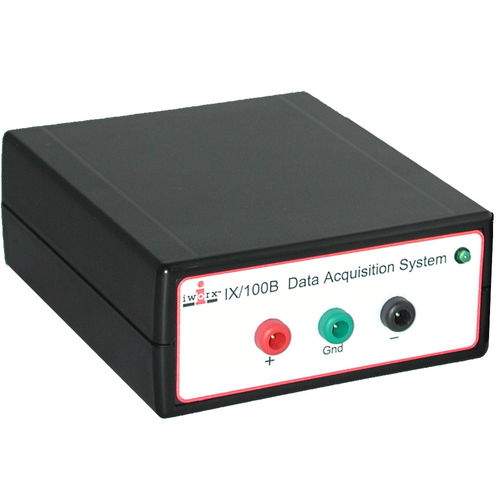

Research data acquisition system IX-100B

The iWorx 100B Data Acquisition System is a single channel recorder that provides a cost-effective, high performance solution for dedicated applications such as Langendorff or working heart preps where only one biopotential recording channel is required. The iWorx 100B has one isolated input channel and is equipped with a low voltage stimulator and an audio output. This recorder delivers the high resolution/low noise performance required for small animal cardiovascular research, Oocyte clamp nerve recording. Resolution and Noise The iWorx 100B uses a 16-bit A/D converter to sample data over its full input range of ±1V at speeds up to 200 kHz. Its low noise greatly reduces the need for gain and offset. Versatile Bioamplifier The iWorx 100B offers a wide selection of low pass and high pass filters* and is safe for human connection. *IX-100B high pass filter values (MHz): 0.03, 0.3, 3, 30, 100 *IX-100B low pass filter values (MHz): 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 150, 200, 300, 400, 500, 600, 700, 800, 900, 1000, 2000, 3000, 4000, 5000, 6000, 7000, 8000, 9000, 10000, 20000 Input Range ±1V, ±250mV, ±125mV, ±50mV, ±25mV, ±12.5mV, ±5mV, ±2.5mV Low Voltage Stimulator The iWorx 100B has a software programmable 16 bit, +/-5V stimulator (DAC). Parameters for stimulator, such as pulse width, frequency and amplitude, may be changed “on-the-fly” using handy controls located in the LabScribe™ software tool bar. Standard protocols include Pulse, Train, Step, Triangle and Ramp. In applications involving isolated heart, the stimulator may be programmed for pacing.
