O2 analyzer iWire-GA1

CO2temperaturelaboratory

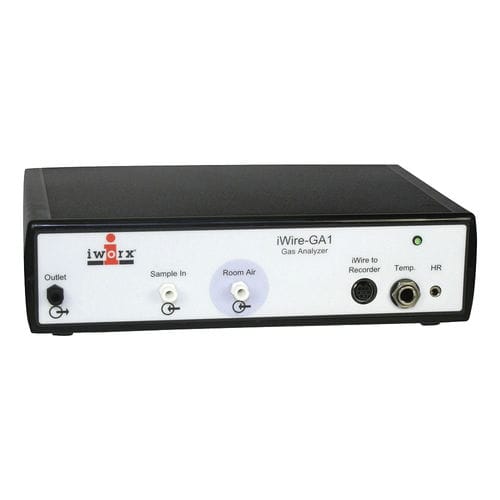

The iWire-GA1, CO2 and O2 Gas Analyzer is easy-to-use, robust and adaptable to human, animal and plant applications. The iWire-GA1 plugs in the iWire port on an iWorx Recorder for recording, display and analysis of O2 and CO2 signals. In addition, the iWire-GA1 incorporates an input for a Temperature Sensor (TM-220) and a Polar(R) Heart Rate Receiver (PHRM-100 ). The iWire-GA1 is suitable for recording and measuring: Basal Metabolic Rate (BMR) Resting Metabolic Rate (RMR) Respiratory Exchange Ratio (RER) Sedentary to light activity VO2 and VCO2 VO2 Max Specifications General SensorsO2, CO2,Temp, Barometric Pressure, HR Temp10 – 50 deg C HRPolar Heart Rate CO2 Sensor Range0-10% Sense MethodNDIR Error< 0.26% CO2 Warm up5-8 minutes O2 Sensor Range0-50 % Sense MethodParamagnetic Linearity< 0.2% O2 Repeatability< 0.2% O2 Drift< 0.4% in 1st 24 Hours, then <0.2% additional the following week, then < 0.2% additional per each following month. Warm up1 minute
