2-channel EMG ROAM

1-channelwireless

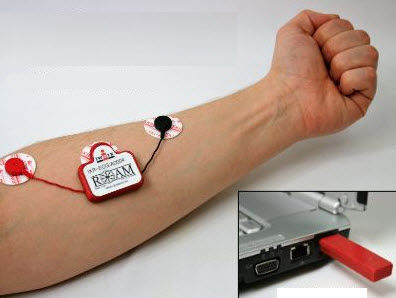

The iWorx ROAM EMG is a wearable, wireless system designed to provide long-term recording and unrestricted movement. The recording device easily attaches to the subject with standard electrodes. The protective case doubles as a charging station. The system works with both Windows and MacOS via standard USB interface. Data can be quickly analyzed with the included Labscribe analysis software or exported directly for other processing. The ROAM Wireless allows for hours of continuous recording with an untethered reach of 20 feet Features: 8+ Hours of Continuous Recording Plug and Play Technology No Syncing Required PC and Mac compatible USB-Powered ECG, Respiration and Accelerometer measurements available Low Noise Includes LabScribe software for Data collection and Analysis. Available Configurations: ROAM Wireless EMG (1 Channel) – IXR-B1 with Accelerometer – IXR-B1A ROAM Wireless EMG (2 Channels) – IXR-B2 with Accelerometer – IXR-B2A Multiple ROAM Device system for upto 8 EMG channels: – RS-WEMGx LabScribe Software Features for EMG SEMG Measurements EMG analysis using LabScribe Integral, Area under the curve, RMS, envelop etc. FFT spectrum and power in different bands Specifications IXR-B1 1 Channel EMG IXR-B2 2 Channel EMG IXR-B1A 1 Channel EMG X,Y,Z acceleration IXR-B2A 2 Channel EMG X,Y,Z acceleration Sampling Speed 5k samples per sec. aggregate Weight 16.8g (20.5g IXR-B2, IXR-B2A) Dimensions 44.2mm x 42.7mm Battery capacity 110 mAhr Battery life > 8hrs Range up to 20ft
