Medical imaging module ThingMagic® M6e UHF RAIN

USB

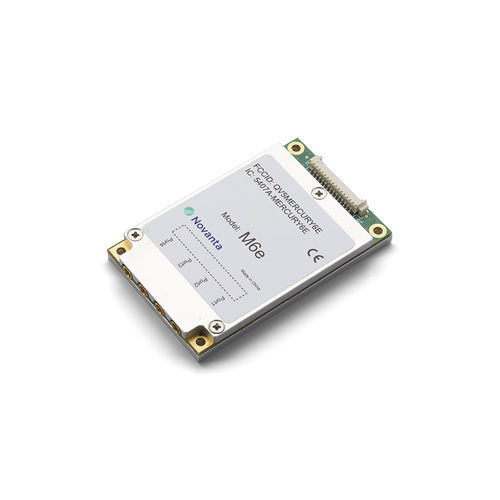

ThingMagic UHF RAIN RFID Module Series offers powerful embeddable RFID technology intended for original equipment manufacturers (OEM) designing for a broad range of applications in the Healthcare and Pharmaceutical Industries, Point of Sale Devices, Security Access Points, Mobile Devices, Kiosks, Vending Machines, and Tag Commissioning Stations. The ThingMagic M6e (UHF) RAIN RFID Module is JADAK’s full-sized 4-port reader solution designed to fulfill a compact embeddable form intended for surface-mount technology (SMT) manufacturers, and original equipment manufacturers (OEM). ThingMagic M6e is well suited for applications with the most demanding challenges requiring the greatest power and flexibility, while offering improved development time-to-market advantages. The M6e supports four 50 Ω MMCX antenna ports with a powerful read range of 30 ft (9 m), a wide command adjustable RF output range of 5 dBm to +31.5 dBm (0.01 dB steps), two separate read and write levels and reads at a rate up to 750 tags/sec. Supporting the EPCglobal Gen 2 (ISO 18000-6C) standard, the M6e is globally compatible utilizing full access to the 860–960 MHz RFID Carrier Frequency Range, with optional RFID protocol support for: AEI ATA, ISO 18000-6B, and IP-X. The M6e interfaces with host using USB 2.0 and UART and supports board-to-board and board-to-host connectivity.
