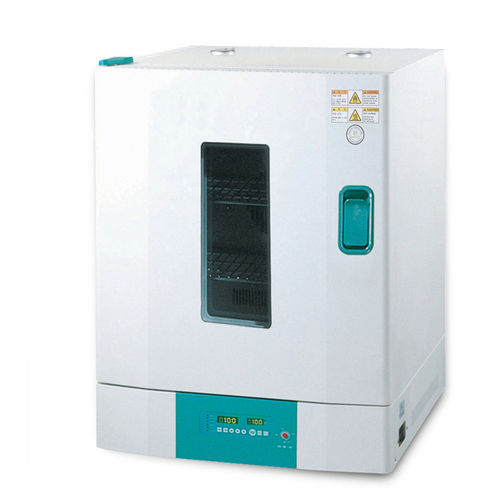

Heating oven OF series

dryinglaboratoryforced convection

Superb air dispersion and uniform temperature istribution Equipped with a powerful yet noiseless sirocco fan, OF-G Models ovens provide superb drying performance especially suitable for samples with high moisture content. Operating Features Microprocessor PID control. Simple calibration and auto-tuning function. Delayed ON/OFF digital timer range: 1 min ~ 99 hr 59 min. Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad. High temperature limit setting and open door alert. Convenient presetting function for 3 most commonly used temperature settings. RS-232 interface. Constructional Features Forced air convection ensuring optimal air circulation, temperature uniformity, and short heat-up time. Rounded inner chamber corners for easy cleaning and optimal airflow. Corrosion-resistant incoloy sheath heating element and stainless steel interior. Adjustable dual slide vents for controlling inner vapor circulation. (diameter: 38mm/1.5”) Threefold tempered-glass window providing clear inside view of the chambers. (optional) Fan speed control by an analog dial for preventing powdered samples from blowing away. (optional)
