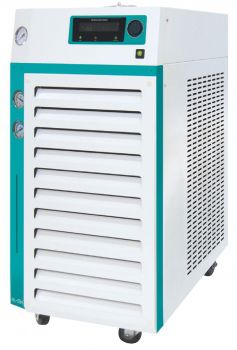

Laboratory cooler on casters HL series

recirculating

Provide a wide range of cooling capacities with temperature reliability. Performance High cooling capacity up to 7.1kW at 20°C. Powerful circulating pumps up to70L/min., 6 bar. Refrigerating system is designed to reduce energy consumption and maximize refrigerating efficiency. Convenience Designed to simplify operation with a touch screen type display. - Easy-to-read VFD display with interactive touch keys. - Setting and resolution indication 0.1°C/°F. - Quick keypad lock prevents accidental parameter changes. - Signal indicator for operation status. Bright LED water level indicator can be seen from a distance. Built in pressure gauge for checking pump pressure at a glance. High/low pressure gauges for condition diagnosis of refrigerating system at a glance. (for H type) Wide filling inlet for easy and safe pouring of solution into the unit. Double service valve prevents refrigerant leakage for easy maintenance. Removable gridded vent for easy maintenance of condenser. Built-in casters for easy transport and installation. Safety Self-diagnostic function identifying errors. Complete safety protection system with warning alarms. - Low fluid level and dry-running protection; when triggered shows an error symbol on the display and an audible buzzer sound. - Over-temperature protection; If the equipment operates at over maximum temperature due to external environment, user can simply identify the error with a visual signal or an audible buzzer sound. - Over-current circuit breaker. Eco-friendly R-404A / R-507 refrigerant use for environmental protection. Splash-proof keypad.
