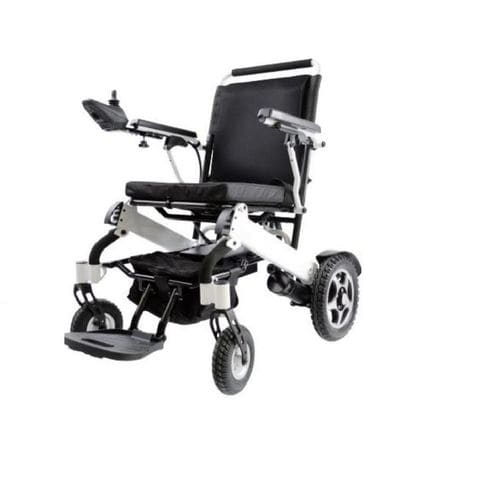

Electric wheelchair AG-WCY207outdoorindoorwith legrest
Add to favorites
Compare this product
Characteristics
- Propulsion
- electric
- Applications
- outdoor, indoor
- Accessories
- with legrest
- Options
- folding
- Frame materials
- aluminum
- Total height (cm)
1,030 mm
(40.6 in)- Total length (cm)
1,030 mm
(40.6 in)- Total width (cm)
400 mm
(15.7 in)- Max supported weight (kg)
125 kg
(275.6 lb)- Max speed (km/h)
7 km/h
(4.3 mph)
Description
AG-WCY207 Electric Folding Wheelchair
Specification
1. Frame: Aluminum
2. Controller: PG(UK）
3. Motor: 200W*2 LINIX CHINA
4. Battery Lithium battery: 24V 20AH
5. Charger: HP 24V, 6A, Taiwan
6. Max speed: 7 km/h
7. Travel mileage: 18KM
8. Gradeability: 6 degree
9. Backrest tilting Fixed
10. Front-wheel 8" pneumatic tires
11. Rear-wheel 10" pneumatic tires, aluminum alloy
12. Armrest Flip-up armrest
13. Footplate Plastic folding footplate
14. Seat and backrest Detachable and breathable thick cushion, with safety belt
15. Weight capacity 125KGS
16. N.W with battery 34KGS
17. Battery weight 3.8KGS
18. Optional Anti-tipper wheels, 180° rotatable controller bracket
19. Unfolding size: 1030*400*1030mm
20. Folding size: 600*400*840mm
21. Carton size: 720*430*880mm
22. Loading capacity: 95pcs/20"GP, 250pcs/40"HQ
-Carton size 720*430*880mm
-Loading capacity 95 pcs/20"GP,250 pcs/40"HQ
