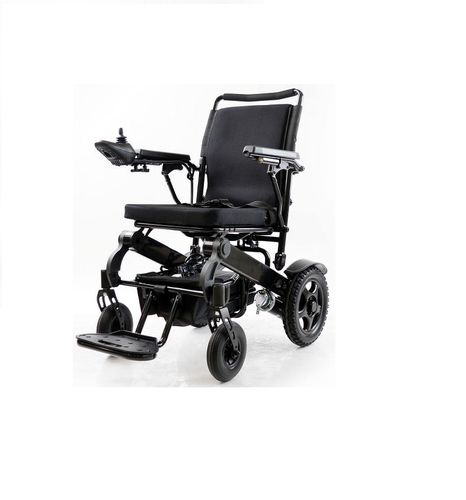

AG-WC01Y Easy-Way Plus Electric Folding Wheelchair
Specification
1. Frame: Aluminum, shiny black, folding without taking off the battery
2. Controller China controller
3. Motor:180W*2 LINIX CHINA
4. Battery Lithium battery: 24V 20AH (Optional: 24V 30AH)
5. Charger: HP 24V, 4A, Taiwan(Optional: 6AH )
6. Max speed: 7 km/h
7. Travel mileage: 18KM (Optional: 26KM,30AH Lithium Battery)
8. Gradeability: 8 degree
9. Backrest tilting Fixed
10. Front-wheel: 8" PU tires
11. Rear-wheel: 12" PU tires, aluminum alloy
12. Armrest: Flip-up armrest
13. Footplate: Plastic folding footplate
14. Seat and backrest: Detachable and breathable thick cushion, with safety belt
15. Weight capacity: 135KGS
16. N.W with battery: 32KGS
17. Battery weight: 4KGS
Optional: Anti-tipper wheels, 180° rotatable controller bracket
Special Quick release battery; Narrow total width and easy to move indoors.
Unfolding size: 1030*400*1030mm
Folding size: 600*400*840mm
Carton size: 720*430*880mm
Loading capacity: 95pcs/20"GP,250pcs/40"HQ
