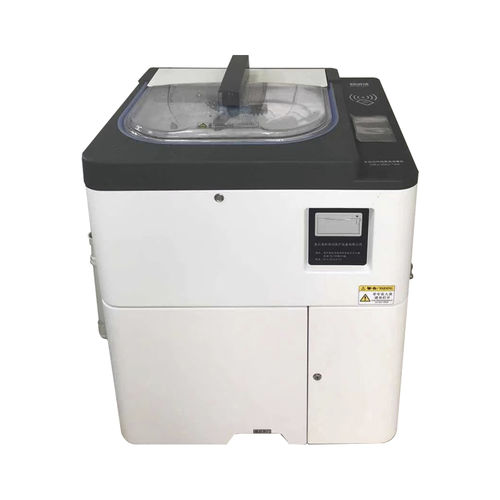

Endoscope disinfection system AG-ES100

automatic

AG-ES100 Automatic Endoscope Disinfection Specification Water supply requirements and pressure Tap water, water volume: 20L/min or more; 0.2Mpa≤pressure≤0.5Mpa Rated electrical energy parameters: AC220V±10%, 50HZ 10A Body size: width 760 × depth 670 × height 910 (mm) Weight about: 80kg Disinfectant storage tank capacity: 12 liters Suitable enzyme storage tank capacity: 2 liters Alcohol storage tank capacity: 2 liters The amount of suitable enzyme can be set according to the requirements of suitable enzyme. Alcohol dosage: The factory setting is that the alcohol is dried for 2 minutes and can be adjusted by yourself. Leak detection method: Digital continuous leak detection, alarm at any time for air leakage in the endoscope. Water treatment: external ultrafiltration Recording of disinfection times: The times are automatically recorded and displayed on the screen. Sterilization time adjustable Disinfectant addition or efflux: Start the automatic addition and automatic efflux separately.
