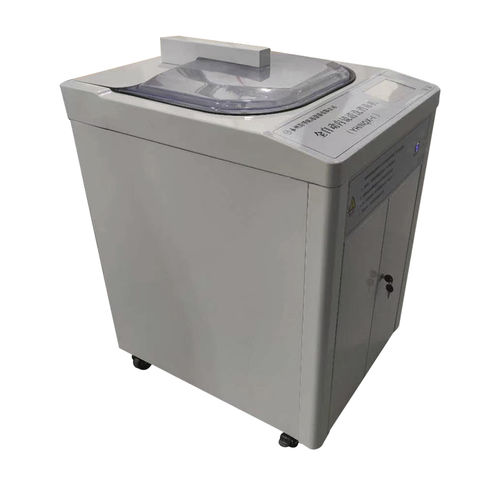

Endoscope disinfection system AG-AED01

automatic

AG-AED01 Automatic Endoscope Cleaner 1. Water supply requirements and pressure: Tap water, water volume: 20L/min or more; 0.2Mpa≤pressure≤0.5Mpa 2. Rated electrical energy parameters: AC220V±10%, 50HZ 10A 3. Main body size: width 760 × depth 670 × height 910 (mm), Weight: about 80kg 4. Disinfectant storage tank capacity: 12 liters 5. Suitable enzyme storage tank capacity: 2 liters 6. Alcohol storage tank capacity: 2 liters 7. Suitable enzyme dosage: It can be set according to the requirements of the suitable enzyme. 8. Alcohol dosage: The factory setting is 2 minutes of alcohol drying, which can be adjusted by yourself. 9. Leak test method: digital continuous leak test, alarm at any time for air leakage in the endoscope. 10. Water treatment: external ultrafiltration 11. Record of disinfection times: The times are automatically recorded and displayed on the screen. 12. Disinfection time: adjustable 13. Disinfectant addition or efflux: start the automatic addition and automatic efflux separately.
