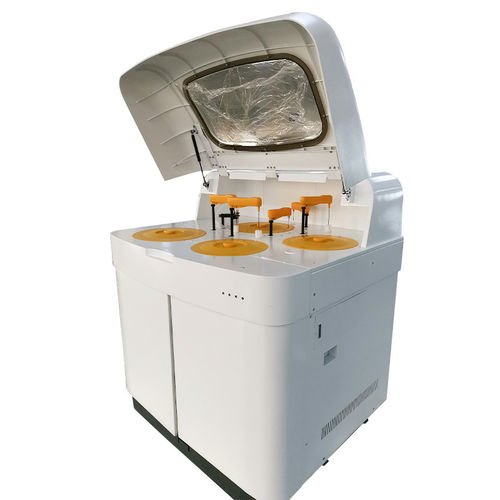

Automatic biochemistry analyzer AG-DS401

benchtoprandom accessenvironmental

AG-DS401 Automatic Chemistry Analyzer Introduction 1. Random access and direct reading system 2. New concept and more friendly software 3. Automatic washing station for both sample and reagent probe 4. Liquid level detection, collision protection for sample/ reagent probe. 5. Reliable cooling system for reagent chamber 8 channels automatic cuvette washing system 6. Perfect self-checking and alarm function 7. Bar code reader and ISE Module available on request 8. Designed with environmental protection concept Technical Parameter Assay Type：Fully automatic, Random access system, End point, Kinetic, Fixed time, Immunoturbidimetry,1-2 reagent, Multistandard Assay Methods：reagent/serum blank etc. Assay Items：80 assay Throughput：400 tests/hr Sample Position：1 sample disk, 88(Extensible) Reagent Position：2 reagent disks, R1:40, R2:40(Extensible) Sample Volume：1-100ul, 0.1ul/step Reagent Volume：1-500ul, 0.1ul/step Reaction Time：0-999 seconds Reading Cuvette：90 UV-transmitted plastic cuvettes(quartz glass cuvettes optional) Cuvette Washing：8 channels automatic washing system Calibration：Linear, Non-linear, Multi-standard, K factor Sample Dilution/Reset：Sample can be diluted and retested if results are out of range or the sample is insufficient.Also with calibrator auto diluting function Wavelength：330-850nm O.D. Range：-0.1000-6.000A Reaction Volume：120ul Thermostatic System：Solid direct heating, 37℃ ± 0.1℃ Light Source：Halogen lamp Absorbance Resolution：0.0001A Absorbance Accuracy：0.0003A(0-2.5A) Repeatability：± 2% Quality Control：Levy Jennings quality control program at 3 levels Barcode：Optional Printer：Multiple report formats are available
