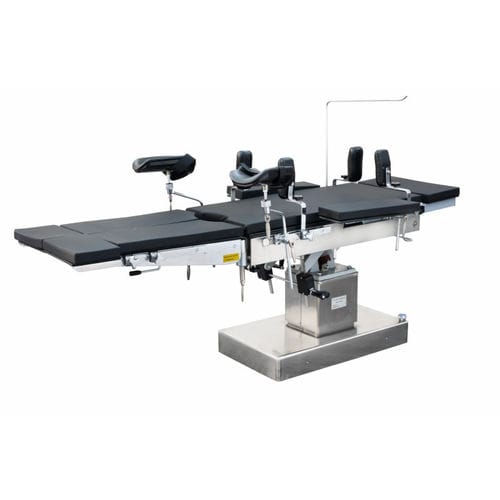

Universal operating table AG-OT015

electricTrendelenburgreverse Trendelenburg

Universal operating table AG-OT015 multi-functional manual operation table can be operated by using a hydraulic pressure pole, not by electric to lift and lower the top board, which is very easy and convenient for doctors during general surgery. Introduction Using gear drive to make the forward and backward, left and rightward. Using mechanism to make headboard fold upward and downward. Using a pneumatic pole to make the backboard fold upward and downward. The Leg board can be detached. The tabletop is composed of the headboard, backboard, seat board, leg board. The platform of the operating table is made of a hydroxybenzene aldehyde board in favor of taking X-ray and C-arms images for the whole position. The operation table can rotate for 360°and adjust to “∧” position. Parameter Head Rest: 250×500mm Back section: 465×500mm Kidney Bridge: 75×500mm Seat Section: 450×500mm Leg Section: 600×240mm Foot Rest: 273×180mm Table Top from Floor Min. height: 750mm Adjust: ≥200mm Range of Movements Max. Reversed Trendelenburg: ≥15° Max. Trendelenburg: ≥20° Max. Lateral Tilt: ≥15° Adjustments of Sections Head Rest-raised from the horizontal: ≥45° Head Rest-lowered from the horizontal: ≥90° Back Section-raised from the horizontal: ≥45° Leg Section-lowered from the horizontal: ≥90° Leg Section-opened: ≥90° Backward and Forward movements: ≥400mm Kidney Bridge Elevation: ≥100mm Foot Rest-can be kept horizontally or perpendicularly to the Leg Section Safe working load: 135kg Accessory Footswitch: 1 piece Shoulder holder: 1 piece Pillow: 1 piece Armrest: 1 piece Handle: 1 piece Anesthesia screen frame: 1 pair Filth basin: 1 pair Leg holder: 1 pair Assist platform: 1 pair
