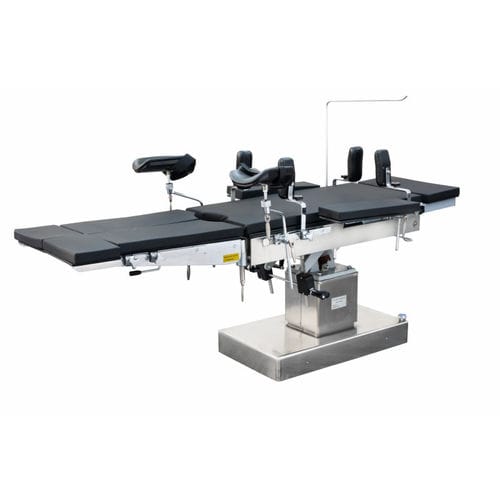

Universal operating table AG-OT012

electricTrendelenburgreverse Trendelenburg

Electric Surgical Table with Antistatic Mattress AG-OT012 Universal operating table The electric surgical table is suitable for surgical procedures of the head, neck, thorax, abdomen perineum and extremities as well as for gynaecological, obstetrical, urological, otorhinolaryngological and orthopaedics operations. It is raising, lowering, lateral tilt, reversed Trendelenburg and Trendelenburg, the up-down folding of the back section are all conducted electrically and controlled by buttons. Electric Surgical Table Specification Model:AG-OT012 Length:2100mm Width:480mm Head Section:280*325mm Back Section:500*480mm Seat Section:530*480mm Leg Section:510*236mm Kidney Bridge:75*500mm Foot Section:100*480mm Min Height:750mm Max Height:1000mm Adjust:250mm Reversed Trendelenburg:≥20° Trendelenburg:≥15° Lateral Tilt:≥15° Head Section Raised from the horizontal:≥45° Head Section lowered from the horizontal:≥90° Back Section Raised from the horizontal:≥45° Kidney Bridge Elevated:≥100mm Leg Section Lowered from the horizontal:≥90° Leg section opened:≥90° Electric Surgical Table Structure 1. The tabletop is made up of a head section, back section, seat section, leg section, and kidney bridge. The head section can be disassembled. The head section can be raised or lowered from the horizontal. The leg section can be lowered from the horizontal and opened. The back section can be raised or lowered from the horizontal. 2. Tabletop is made of engineering plastics, thus X-ray examination of can be carried out on it. 3. The electric controlling part is made up of a steady power supply, a controlling push-button container.
