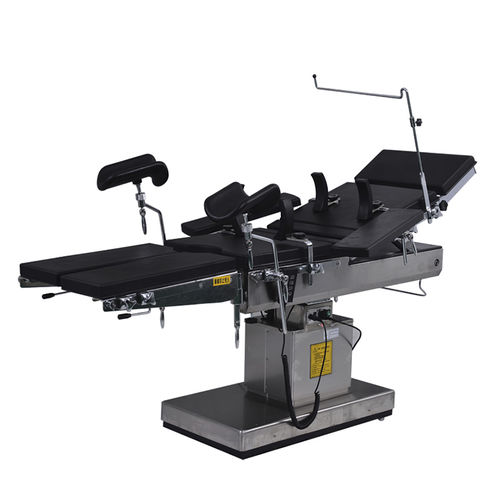

Universal operating table AG-OT009

electricTrendelenburgreverse Trendelenburg

Electric Operation Tables with X-Ray Examination AG-OT009 Universal operating table AG-OT009 is made up of the tabletop, main part, electric controlling part and the accessories, etc. Its raising, lowering, left and right inclining, forward and backward inclining, forward and backward moving are all driven by the motors. Operation Table Structure 1. The tabletop is made up of a head section, back section, seat section, leg section, foot section, and kidney bridge. The head section and the foot section can all be disassembled. The head section can be raised or lowered from the horizontal. The leg section can be lowered from the horizontal and opened. 2. Tabletop is made of engineering plastics, thus X-ray examination of can be carried out on it. 3. The main part includes rotary frame, lateral tilt arrangements, Trendelenburg and reversed Trendelenburg arrangements, ascending and descending arrangements, and the base. The lateral tilt arrangements Trendelenburg and reversed Trendelenburg arrangements can drive the rotary frames to carry out the lateral tilt, Trendelenburg, and reversed Trendelenburg movements. Ascending and descending arrangements and back section movements can drive the operating table to ascend or descend. 4. The electric controlling part is made up of a steady power supply, a controlling push-button container. Operation Table Specification Safe working load: 135kg Dimension of tabletop Overall Size: 210cm*50cm Height: 75-100 cm Adjust. 25cm Head Section: 25×50cm Back Section: 54.5×50cm Kidney Bridge: 7.5×50cm Seat section: 45×50cm Leg Section: 60×24cm Foot Section: 18×27.3cm Reversed Trendelenburg: ≥20° Trendelenburg: ≥15° Lateral Tilt: ≥15°
