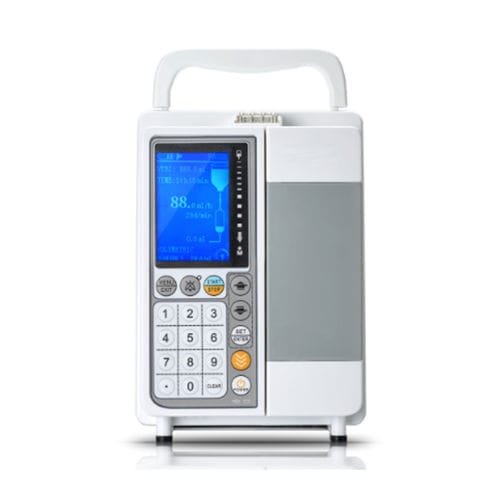

Single use infusion pump AG-IP710A

AG-IP710A Infusion Pump For Hospital Specifications Infusion Mode ( 5 Mode) : Volume Mode, Time Mode, Night Mode, Bolus Mode， Drug mode. Rate Unit: ml/h, volume/time，d/min IV Sets: Standard single use IV sets ( 10,15,20,50, 60d/mL, with diameter 3.4 ~ 4.5mm) Flow Rate: 1.0ml/h～1200ml/h, 1.0d/min～400d/min Increment: 1.0-100ml/h in 0.1ml/h step；100-1200ml/ in 1ml/h step Deviation Flow Rate：≤5%（after calibration） VTBI: 0.1～9999.9 ml Total Volume 0.0～9999.9 ml Time 1min～＞99h59min Purge Rate 600ml/h，display purge volume KVO 0.1ml/h~5ml/h，adjustable Keypad Numeric keypad, user friendly BOLUS Bolus function available, flow rate adjustable Night Mode Night mode ON, screen to be dim automatically in 5min standby time expired. Occlusion pressure detector Occlusion pressure detection, 40KPa～140KPa, 0-9 levels adjustable, dynamic pressure value display Air bubble Detector Ultrasonic detection, ≥50ul，Single bubble volume: 50～300 μl, 0-9 levels adjustable. Volume 1-10 levels adjustable Motor Anti-reverse Function Anti-reverse function to prevent upstream IV Set Open system, accept all kinds of IV brands after calibration Self-Testing Self-Testing before startup and during infusion Audio Visual Alarm Message Air bubble, downstream occlusion, door open, infusion finish, standby time expired, battery low, battery empty, battery disengaged, AC Power disengaged, motor error, pump error, pressure sensor error, parameter error, system abnormal Features Double CPU, Safter Infusion Brightness LCD, Display visually Numeric Keypad, User Friendly 10 Level occlusion pressure detection adjustable Occlusion, Air-in-line, Audio Visual Alarm Volume: 10 settings
