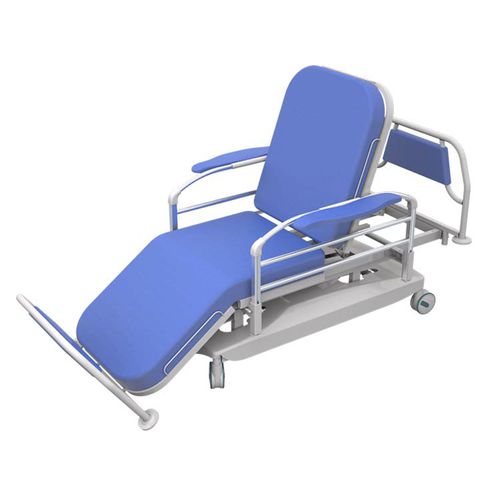

Electric dialysis chair AG-XD20

3-sectionon casterswith footrest

Electric Medical Dialysis Chair AG-XD207 Electric dialysis chair Electric dialysis chairs are mainly applied in hospital hemodialysis rooms, dialysis rooms, etc. A special seat for patients during hemodialysis, and hemodialysis patients are the largest user group. During the hemodialysis procedures, the patient can freely adjust the height of the back, legs, and cushion to make the best body position and comfort. The display screen can display the weight change of the patient during dialysis. Main Feature 1. Two motors control seat tilting, up and down respectively, another motor lets back and leg section move as unite 2. Headboard and arm board are manual adjusted 3. The chair can apply to various postures Specification 1. Chair Dimension 1700mm(Curve Length)*560mm 2. Height: 570mm(min.)---830mm(max) 3. Head section turn: -15°~ 25° 4. Back section lift: 0 ~ 80° 5. Leg section turn: 0 ~ -90° 6. Arm Board swing out: 0 ~ 45° 7. Arm Board height-adjustable: 100mm 8. Arm Boardslide: 100mm 9. Arm board declining angle adjustment: -15°~ 10 ° 10. Arm Board dimension: 450*160mm 11. Trendenlenburg & reverse trendelenburg: 0 ~ 12° 12. Arm Board Concave Radian R108
