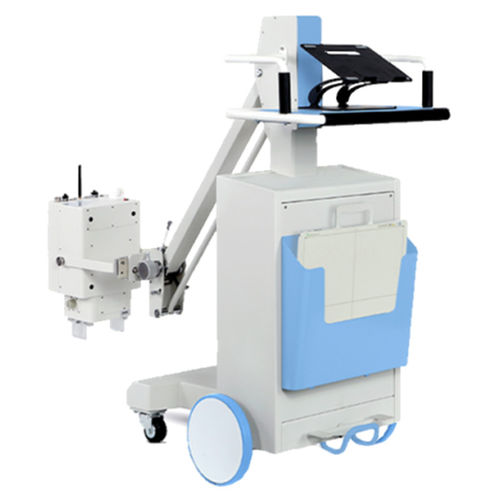

Digital mobile radiography unit AG-MPD56A

5.6kw Mobile Digital X-ray Machine Portable DR X-Ray Machine Digital mobile radiography unit AG-MPD56A Specification Portable DR X-Ray Host Max. output power:5.6kW Working frequency:80kHz-200kHz KV range:40-125kV mA range:5-100mA mAs range:0.1-320mAs Exposure time:0.002-10s Interface:WiFi，RS232 Power supply:90-264VAC, 50/60Hz Battery:3000mAh Collimator: Deviations between the ray radiation field and light field is not more than 3% of SID Amorphous Silicon Panel Detector Scintillator Type:CsI Pixel size:139um Pixel matrix:3072 x 3072 Effective area:427mm x 427mm Spatial resolution:3.6 lp/mm Data interface:Wifi Power supply:24VDC Battery:4180mAh Workstation Laptop: CPU Intel i5 /Memory 8GB/Hard disk 512GB/Screen resolution 1920x1080 Image processing system: DICOM3.0, image brightness/contrast, window width/window position, tissue equalization, image enhancement and sharpening, image transmission and printing, etc. Portable rack Height range: The minimum distance between the X-ray focus center and the ground is not more than 500mm, and the maximum distance is not less than 1750mm Rotation range: The rotation angle of the X-Ray host around the vertical axis is ± 90 º
