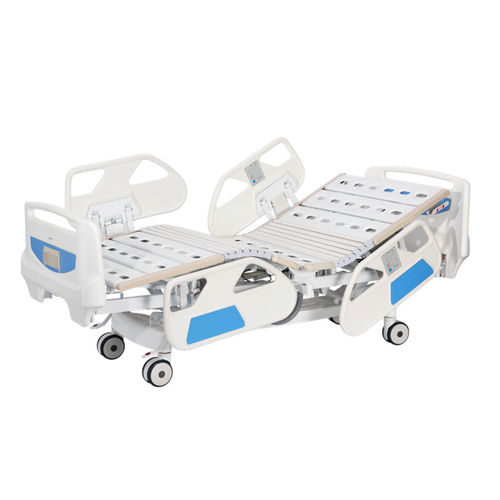

Hospital bed AG-BY004

home carenursing homeelectric

AG-BY004 Five Functions Electric Hospital Home Care Bed With Steel Bedboards PS: Standard Product NOT Include Soft Joint Please Contact For Optional Soft Joint Specification Size(L*W*H):2200*1060*440-760mm 1. Durable frame: made of cold-rolled steel plate, treated by electro-coating and powder-coating 2. Detachable ABS headboard/footboard 3. 4-part steel bed boards with soft joint 4. Detachable ABS handrails with the embedded operator 5. Quiet and robust electric actuators provide reliable operation 6. Embedded control of all electrically operated functions and movements 7. Fully tested sturdy construction capable of taking a maximum user weight of up to 250kg 8. Four silent wheels with the central-controlled braking system, φ125mm 9. Motor: Linak motor from Denmark 10. With one ss height-adjustable I.V pole, with Drainage hook 11. Loading capacity: 16pcs/20GP, 55pcs/40HQ Functions 1) Backrest max upward angle: 75° 2) Footrest max upward angle: 40° 3) Height adjustment: 440-760mm 4) Trendelenburg:12° 5) Anti-trendelenburg: 12°
