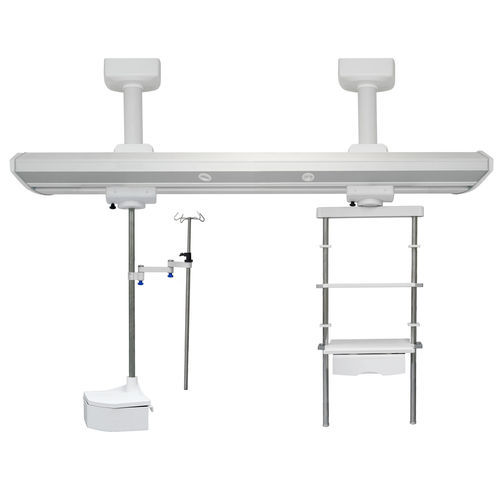

Bridge type pendant FY-1100C/CC1/2ceiling-mountedintensive careICU
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- bridge type pendant
- Installation
- ceiling-mounted
- Applications
- intensive care, ICU
- Configuration
- fixed
- Other characteristics
- with shelves, with column
- Load capacity
Max.: 350 kg
(772 lb)Min.: 270 kg
(595 lb)
Description
Type: Mechanical
Cantilever length: double arm, 800+800mm, customizable
Turning radius:800+800mm
Rotating angle: 340°
Brake: FRICTION
Function column height: 600 -1000mm, customizable
Communication Socket: RJ45(6 types)
Instrument platform: 2 layers， tray height adjustable, load 80kg
Power socket:（optional with GB Class3 general) 220V 50Hz 10A
Gas terminal: VAC*1 O2*2 AIR, customizable
Equipotential ground: equivalent potential port x 2
