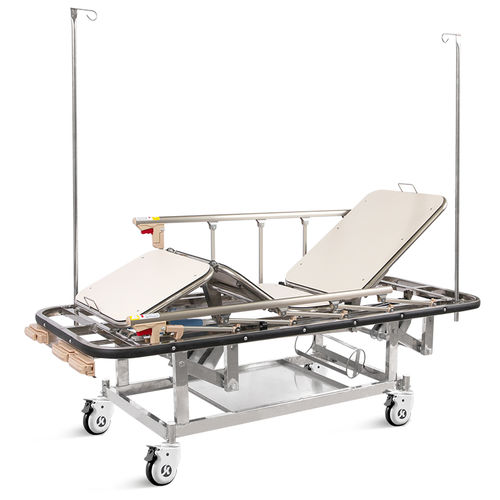

Patient transfer stretcher trolley SKB037(C)

emergencytransfermanual

Product overview
SKB037(C) Patient Trolley is an adjustable hospital patient trolley designed for patient transfer, nursing care and hospital transportation. It features adjustable back-rest and knee-rest positions, manual crank control for three functions, foldable aluminum side rails, oxygen bottle holder, IV pole, debris plate and a high-density mattress.

Highlights

• Bed surface: phenolic compact board — thinner and X-ray friendly
• Bed frame: high-quality stainless steel (S.S.) with mirror surface polishing
• Handle crank: three-function bed controlled by manual cranks
• Guardrail: aluminum alloy side rail, knocked-down type, tightened by screws — easy to replace
• Bumper strip: reinforced with 6 rivets per side for extra fastening
• Castors: 5" silent castors with advanced universal brake wheels for easy movement and reliable performance
• Leg plate: leg part can be adjusted to flat when lifting
• Oxygen bottle holder: 1 pc
• IV pole: adjustable stainless steel pole (Outside Ø Φ19*1, Inside Ø Φ16*1) with load capacity 15 kg and fixed device for stability
• Debris plate included

Technical parameters (table)
External size (L x W x H) : 1970 x 760 x 620-900 mm
Back-rest adjustment : 0 - 75°
Knee-rest adjustment : 0 - 35°
Safe working load : 200 kg

Technical configuration (table)
Handle crank : 3 pcs
5" covered castors : 4 pcs
Aluminum alloy side rail : 1 set
I.V pole : 2 pcs
Debris plate : 1 pc
Oxygen bottle holder : 1 pc
Mattress : 1 pc

Usage & benefits

• Designed for efficient patient transfer and transport in hospitals and care facilities
• Durable stainless steel frame with polished finish for hygiene and longevity
• Phenolic compact stretcher surface facilitates X-ray imaging without removal
• Modular guardrail design for easy maintenance and replacement

Technical specifications

• Model: SKB037(C)
• External size (LxWxH): 1970 x 760 x 620-900 mm
• Back-rest adjustment range: 0 - 75°
• Knee-rest adjustment range: 0 - 35°
• Safe working load: 200 kg
• Handle cranks: 3 pieces (manual)
• Castors: 5" silent universal brake castors, 4 pcs
• Side rails: aluminum alloy, 1 set (knocked-down type, screw tightened)
• I.V. poles: 2 pcs (stainless steel, adjustable, load capacity 15 kg)
• Oxygen bottle holder: 1 pc
• Debris plate: 1 pc
• Mattress: 1 pc
