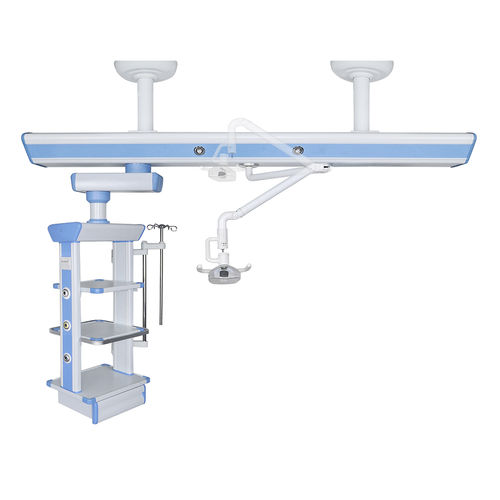

Medical pendant YF-MP-03D

supply columnceiling-mountedICU

Technical Parameters (Dry Area) Horizontal rotation angle: - ≤340° Rotation arm length: - 500mm Gas outlets: - Oxygen, Vacuum, Medical Air Electric sockets (220V/10A): - 8 pcs Ground terminal: - 2 pcs Net connect (RJ45): - 1 pc Adjustable stainless steel IV pole: - 1 set Dry area loading capacity: - ≥300kg Each platform loading capacity: - 50kg ● 3-layer platform (height adjustable), round corner with anti-collision design ● Brake system to avoid pendant moving ● One drawer Main Features ● High grade aluminium alloy main body ● Powder-coated surface ● Ceiling mounted system, stable and firm ● Bridge length: 1600-2500mm (customization) ● 2 lamps on the front of the bridge ● Main power switch and gas valve at the back of the bridge ● Gas connection with different colors and shapes to avoid wrong connection ● Gas outlets life: insert&pull out more than 20000 times ● Secondary seal, with gas maintenance Options ● Swing-arm lamp ● Camera
