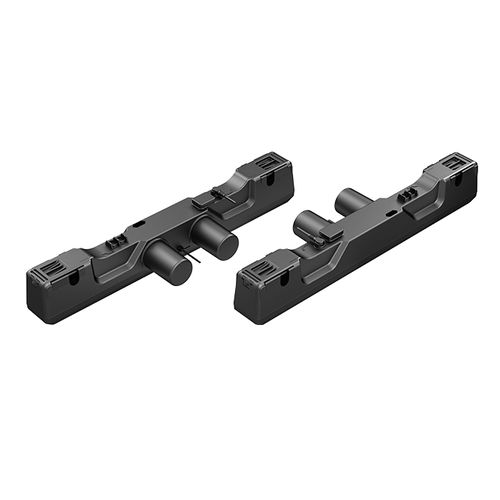

Linear actuator JC35S11
electricfor hospital beds

Linear actuator - JC35S11 - Jiecang Linear Motion - electric / for hospital beds
Linear actuator - JC35S11 - Jiecang Linear Motion - electric / for hospital beds
Linear actuator - JC35S11 - Jiecang Linear Motion - electric / for hospital beds - image - 2
Linear actuator - JC35S11 - Jiecang Linear Motion - electric / for hospital beds - image - 3
Add to favorites
Compare this product

Go to the Jiecang Linear Motion website for more information

Characteristics

Movement
linear
Type
electric
Applications
for hospital beds
Load capacity

4,500 N

Speed

3.5 mm/s, 4.7 mm/s

Description

· Voltage : 100-240 VDC · Stroke : Max.87mm Color: Gray /Black IP grade: IP20 Input voltage: 100VAC～240VAC Output voltage: 29VDC Stroke length: Backrest stroke: Max.87mm Legrest stroke: Max.69mm Installation dimensions: L=581mm Noise level: Single action≤50dB, ( environmental noise≤40dB) linkage action≤53dB, ( environmental noise≤40dB) Built-in electrical limit switch Weight: About 4.6kg Static bending moment: lateral loads are not allowed
