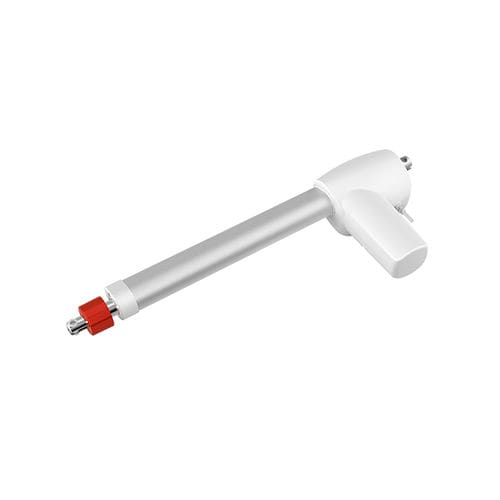

Linear actuator JC35L11electricfor hospital beds
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Applications
- for hospital beds
Description
1.Load thrust up to 10000N and 12000N
2.Max. load pull 6000N
3.Shell Color: Grey
4.Manual clevis:Red
5.IP rating: IP66 (standard or with manual lowering)
6.24V DC permanent magnet motor
7.Stroke length:100-350mm(±2mm) when in push load of 10000N;
100-200mm(±2mm) when in push load of 12000N;
8.Noise levelc52dB;(ambient level≤40dB)
9.Safety nut: necessary
10.Electrical limit switches: built-in
11.Mechanical limit switches:upper limit and end limit
12.Cable: optional in length and plug
Catalogs
JC35L11
8 Pages
