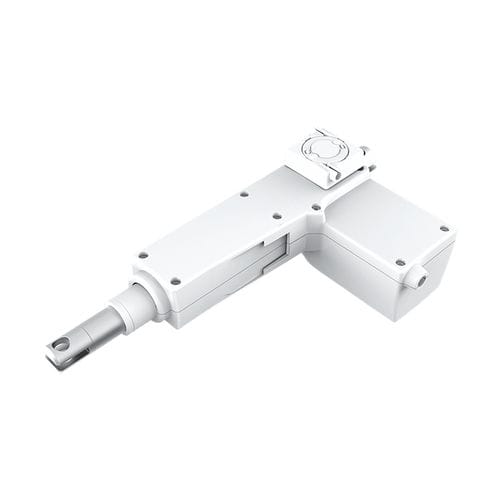

Linear actuator JC35B5-QH
electricfor hospital beds

Linear actuator - JC35B5-QH - Jiecang Linear Motion - electric / for hospital beds
Linear actuator - JC35B5-QH - Jiecang Linear Motion - electric / for hospital beds
Linear actuator - JC35B5-QH - Jiecang Linear Motion - electric / for hospital beds - image - 2
Add to favorites
Compare this product


Characteristics

Movement
linear
Type
electric
Applications
for hospital beds
Load capacity

2,000 N, 3,000 N

Speed

5 mm/s, 5.5 mm/s

Description

Color:Gray/Black IP grade: IPX4 Stroke length: 50-400mm（in steps of 4mm） 50-400mm（in steps of 4mm） Installation dimensions: L=S+177（50＜S≤400） L=283 Noise level: ≤45dB, ( environmental noise≤40dB) Safety nut: optional Hall sensor : optional Reed switch: optional Small signal function (match with JIECANG control box): optional Built-in electrical limit switch. Weight: About 2.3kg (different stroke length and installation dimensions with different weight ) Static bending moment: lateral load are not allowed.
