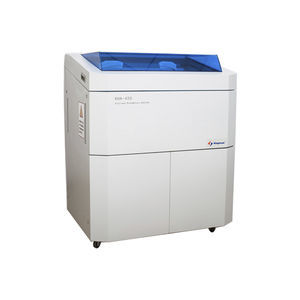

Automatic biochemistry analyzer KHA-320

benchtop

Absorption Spectrometry, Turbidimetry Test Method: End-point, Fixed-time, kinetic Test Sequence: Run tests in strict accordance with sample sequence, Insert emergency at any time Reaction Time: Max 15minutes Reaction Volume: Mini 150μl Cuvette: 81 cuvettes Optical System Light Source: Halogen-tungsten lamp, 12V/20W More than 2000hrs service time Spectrometric Method: After spectrometric method Wavelength: 8 wavelengths, selectable among 340-800nm Detector: Photodiode array Absorption Range: 0-4.0Abs Optical System: Integrated full closed optical system Sample system Sample Probe: Polishing for both interior and exterior, Liquid level detection, anti-collision protection and inventory checking; probe with special cleaning solution to prevent contamination Mixing System: Separate mixer, mix the sample and reagent completely Others Water Consumption: less than 4L/hour Power Supply: AC 220 ±22V 50HZ ±1HZ Power: Max 200VA Ambient Temperature: 15°C-30°C Reagent System Reagent Probe: polishing for both interior and exterior, Liquid level detection, anti-collision protection and inventory checking, have automatic stop and alarm prompt for an obstacle Reagent Bottle: Bottles with 15ml and 30ml are available, dead volume ﹤0.5ml Temperature Control System Heating Mode: Solid constant temperature closed direct heating Heating Time: less than 3minutes Reaction Temperature: 37±0.2°C Temperature Fluctuation: ± 0.1°C Calibration and QC Calibration Mode: Linear, Logit-4p, Logit-5p, Spline, Factor, Polynomial Automatically check calibration curve and fitting the best calibration curve QC Type: Multi-type QC Rules: Multi-rule; default: Westguard
