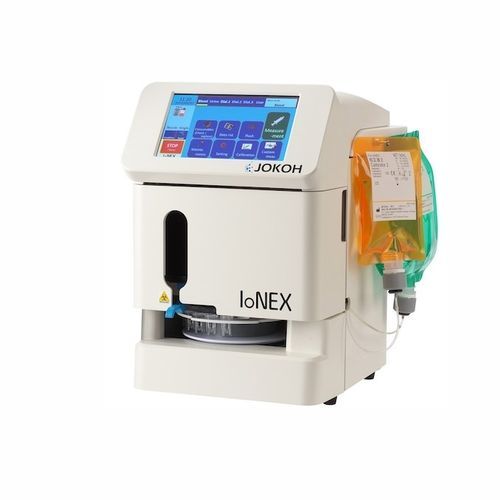

Automatic electrolyte analyzer IoNEX

K+Na+Cl-

Measurement of electrolyte levels in blood Direct method Mode for measuring dialysate fluid concentration Direct aspiration from sampling nozzles Use of own-developed electrodes The electrodes can be selected from 8 combinations. ① Na+, K+ ② Na+, K+, Cl– ③ Na+, K+, Ca2+ ④ Na+, K+, pH ⑤ Na+, K+, Cl–, Ca2+ ⑥ Na+, K+, Cl–, pH ⑦ Na+, K+, Cl–, pH ⑧ Na+, K+, Cl–, Ca2+ *Temperature control unit is required for pH parameters. Each sample is measured in approximately 35 seconds. *Without temperature control unit. Automatic calibration once a day (every 24 hours) enables accurate measurements. Measurement samples are Whole blood, Serum, Plasma, Diluted Urine, Hemo-Dialysis Solution A (Acid Concentrates), Solution B (Bicarbonate), Solution A+B A barcode reader (optional) can also be connected. *Online communication to the inspection system is possible by linking ID and measurement results. It is equipped with a color LCD screen.
