Linear feeding system

vibratorycontinuouspackaging machine

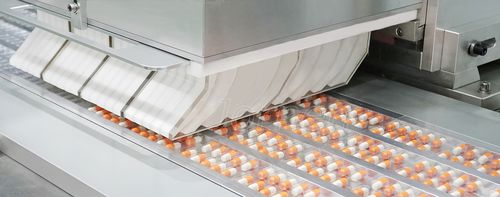

This Blister Tube Feed System improves the performance and increases the productivity of your blister packaging production. It is suitable both for intermittent or continuous motion Blister Packaging Machine in medium or high speed. It can fill the entire index of the Blister Machine at once while the webbing is stationary (for intermittent Blister Machine). The Tube Feeder can also run reciprocally on the rail, synchronously with the running webbing to fill the entire index (for continuous motion Blister Machine). > Blister feeding begins by transferring the capsules or tablets into the hopper and then exiting the hopper via the linear vibratory conveyor. > The combo structure comprises the upper, middle, and lower trays. It can fill the entire index of the Blister Machine at a time. > The capsules or tablets are fed into the upper tray, which moves up and down with vibration to assist capsules or tablets into the tubes. > The upper tray has a sensor that can automatically monitor capsule or tablet level; when the level is low, it will signal the vibrator to convey more capsules or tablets. > The middle tray controls the capsule, ensuring only one capsule or tablet is passed to the lower tray at a time. > Each tube in the lower tray is aligned with a blister pocket; when the webbing stops, the capsule or tablet is discharged into the pocket.
