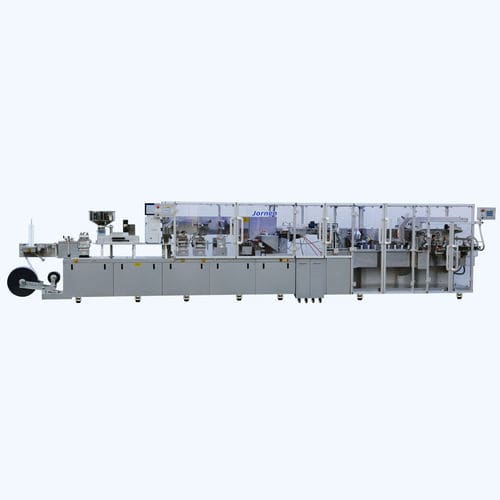

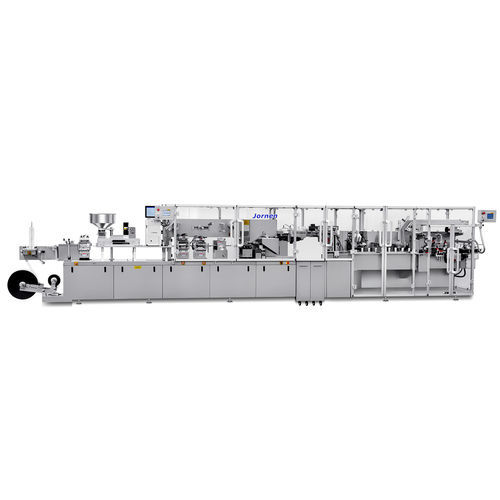

Packaging system with cartoner module BPL120

automaticroboticintermittent

This Blister-Cartoner Line is combined with the DPP260Ki2 Blister Machine and ZH120i Cartoner. Through the integration of a blister and cartoner module for packaging and cartoning of pharmaceutical tablets, capsules, and ampoules, this Blister Packaging Line is Jornen’s innovative response to the need for high efficiency and low-cost operation, flexibility, and maximum productivity for small and medium batch production. ·Processes all common solid dose products and all types of forming material. ·The machine can achieve 180 minutes of uninterrupted production thanks to the Blister module with forming material reels of up to 600mm in diameter and waste material trimming cutter (optional). ·Capable of all standard types of closure systems for cartons from tuck-in to hot-melt. ·The heart of a Blister Line is the connection between the Blister Machine and Cartoner. In this line, the connection phase is truly innovative thanks to two vacuum arms and the blister counting magazine that adopt precise servo technology. These accurately control blister transfer, faulty blister rejection, positioning, and feeding, etc., to assure the stability of high running speed. ·Since this Line adopts a transfer belt to connect the Blister Machine and Cartoner, it provides easy changeover for different sizes of formats and cartons. ·This line adopts the fully-enclosed structure and safety door, it is in line with the stringent safety standards. Main Technical Parameters Range of Carton Size: Max.: 180x85x60mm Min.: 75x35x15mm Machine Power: 12kw
