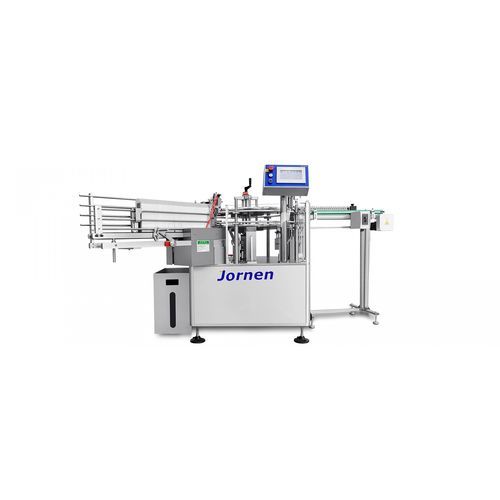

Automatic cartoning machine ZV60B

intermittent-motionverticalvacuum

The Vertical Cartoning Machine ZV60B is a mechanically driven, intermittent-motion vertical cartoner suitable for packaging cosmetic and pharmaceutical products that require vertical loading into a carton at speeds of up to 60 cartons per minute. The standard pre-glued cartons are pulled via vacuum from the carton supply magazine. The bottom of the carton is closed by tuck-in or hot-melt closure methods. After closure, the carton is transferred (vertically) to the product loading area. The products can be manually loaded into cartons vertically. Operators can stand or sit while loading at the ergonomically designed hand-loading area. The system can also adopt automatic feeding systems (optional). After loading, the top of the carton is closed; tuck-in or hot-melt closure methods are available. At the end of the machine, the completed cartons are automatically discharged from the machine to a conveyor. The machine has a compact design, maximizing space efficiency.
