Wraparound packaging system TPM series
filmfloor-standingblister

wraparound packaging system
wraparound packaging system
wraparound packaging system
wraparound packaging system
wraparound packaging system
wraparound packaging system
wraparound packaging system
Add to favorites
Compare this product


Characteristics

Type
wraparound, film
Configuration
floor-standing
Container type
blister, film, for boxes
Application domain
for the pharmaceutical industry
Options
sealing
Production capacity

30 p/min

Weight

750 kg
(1,653.5 lb)

Length

2,300 mm
(90.55 in)

Width

910 mm
(35.83 in)

Height

1,850 mm
(72.83 in)

Description

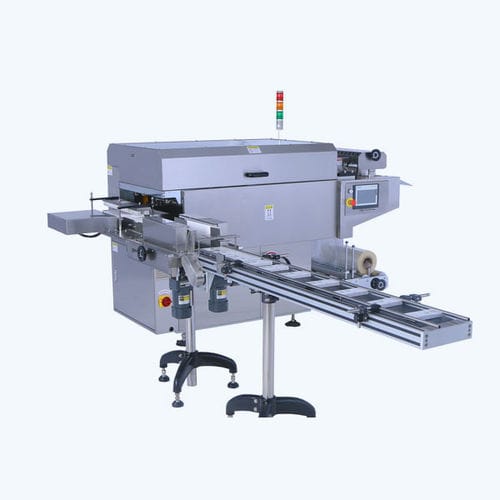

The Overwrapper is an End-of-Line Packaging Machine. It groups cartons (or similarly shaped objects) together or stacks them in bundles, and tightly wraps them in the film leaving excess material at either end. The excess film at the ends of the bundle is then folded and sealed. All-around sealing further enhances the moisture-proofing of the product. It also can be connected to a packaging line with Blister Machines, Cartoners, and Case Packers.

VIDEO
