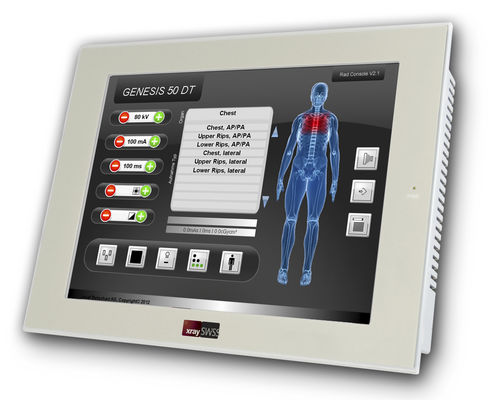

X-ray generator control panel DTK - 15

with touchscreen

It is equipped with an rs 232 interface. All functions of the generators are controlled via this interface: Tube voltage mAs 1 point, 2 point and 3 point control Measuring field selection of the AEC Dose area product display Organ automation with arbitrarily expandable library Fluoroscopy, continuous and pulsed. The console software runs under the operating system Windows 10 (or later). This software is supplied on a CD-ROM with all generators The control console is based on an industrial All in One PC. When using a dedicated computer, the following basic requirements must be met: CPU: current Intel ATOM processor RAM: 4 GB HDD: 20 GB Graphics: 1024 x 768 pixel Interfaces rs232 When installing additional programs, their requirements must be observed.
