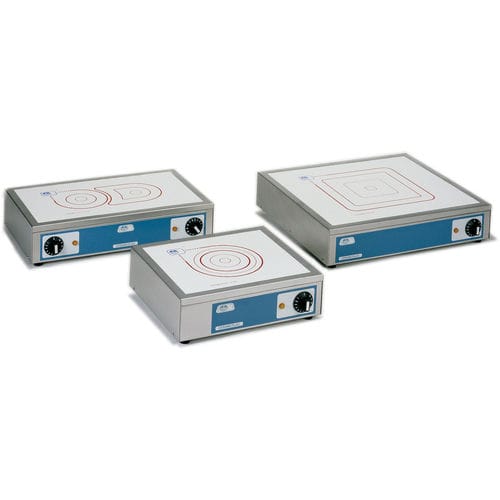

Analog heating plate Ceramic-plac

multi-positioninfrared

Adjustable hot plate temperature up to 400 °c. Maximum supportable weight: 40 kg. SAFETY: CONFORMS TO THE EN 61010 STANDARD,OVER TEMPERATURE CUT-OUT FITTED. Excellent resistance to chemicals.Unaffected by thermal shock FEATURES AND ADVANTAGES The “CERAMIC-PLAC” has the following features and advantages: - Flat, smooth surface. - Excellent resistance to chemical agents. - High heating power within the heated area that permits extreme temperature within a short heat up time. - Excellent thermal qualities and penetration of infrared radiation. - Easy to clean. FEATURES - External case of AISI 304 stainless steel. - Heating elements mounted on ceramic fibre thus making an insulated compact block. - Temperature energy control from 6 % to 70 % of nominal power. (Model Part No. 3000919 and 3000920). - Hydraulic thermostat temperature control up to 400 °C (Model Part No. 3000921)
