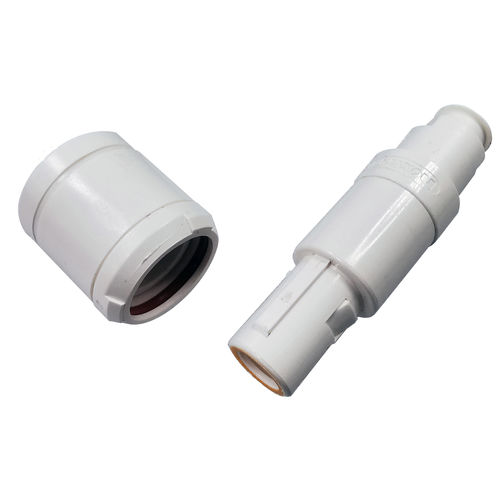

Medical device connector Watertight 1P

plasticstraightpush-pull

1. Push-Pull self-latching 2. Quick & Easy Mating and Un-mating 3. FDA Approved Biocompatible Materials (PSU or PEI) 4. Electrical Safety (Touch ＆ Scoop Proof) 5. Multiple Key Options (6 Keyways) 6. IP64/IP67 7. Watertight and Disposable Connectors Available Specification 1. Connector Type: Straight Plug/Free Socket/Fixed Socket 2. Material(Metal/Plastic): Plastic 3. Nunber of Positions: 2 to 14 4. Termination: Solder/Print Contacts 5. Operation Temperature: -50°C~150°C(PSU)/-50°C~170°C(PEI) 6. Adopt Cross-Section Diameter of Wire: ø2.7 to 6.5 mm 7. Current Rating: 2 to 10A 8. Dielectric Withstanding Voltage: 0.6 to 1.2kVrms 9. Insulation Resistance: 10GΩ Min. 10. Durability: 2000 Cycles Application/ Target Market Patient Monitors Endoscope Dental Laser and Footswitch Electrode Cathode Cosmetic Surgery Respiratory Humidfier CO2 Sensors Ventilators Aesthetic Devices EP Catheters Cardiac Assist and Mapping Defibrillators
