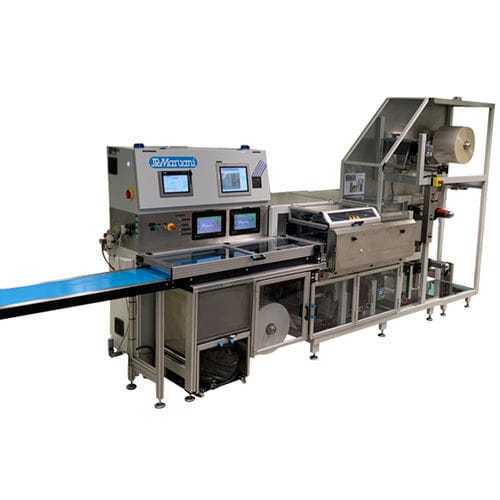

Automatic packaging machine RDM-MAP
continuouselectronicservo-driven

Automatic packaging machine - RDM-MAP - JR MARUANI Packaging Machine - continuous / electronic / servo-driven
Automatic packaging machine - RDM-MAP - JR MARUANI Packaging Machine - continuous / electronic / servo-driven
Add to favorites
Compare this product


Characteristics

Operational mode
automatic, continuous, electronic, servo-driven, semi-automatic
Type
horizontal, in-line
Configuration
floor-standing
Product applications
solids, for medical devices, for sterile materials, for surgical gauze
Container type
bag, film
Application domain
medical industry, for production, for industrial applications
Other characteristics
high-performance, high-speed
Options
with touchscreen
Production capacity

120 p/min

Length

300 cm
(118.11 in)

Width

170 cm
(66.93 in)

Height

19 cm
(7.48 in)

Description

The RDM - MAP is intended for the packaging of high-speed products in sensitive materials. Like the SD/SDR RDM, it is managed by the SIMOTION * system from SIEMENS *. It is secure thanks to 3 levels of access and is equipped with the Audit trail system for production monitoring. It is made up of two modules fixed on a one-piece frame. The sealing by mold allows a uniform pressure on each welding point of the bags without trace of traction. The reinforced mechanics makes it possible to use materials up to 450mm in width which can be divided into multitracks. Designed for high production, it is designed to receive multiple additional control systems in order to be integrated into a continuous production line. Bag length - - from 70mm to 450mm Bag width - from 50mm to 320mm or 450mm Multitrack possible Product height - up to 5mm Compatibility with materials: - Majority of heat sealable materials Types of MAP Sealing - Square movement. Mold to the full shape of the sachet Type of cross section - By scissor blades Type of longitudinal splitting (Multitracks) - By circular knives Loading type - Tape, push tabs or bottom material
