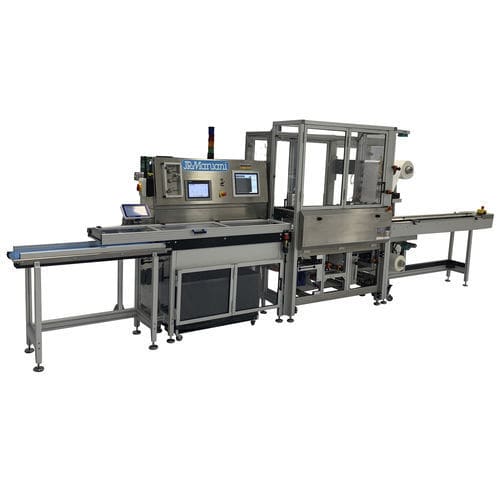

Servo-driven bagging machine SME

horizontal4-sealfloor-standing

The EMS is intended for the packaging of high-speed products in various materials. Like the SD/SDR RDM, it is managed by the SIMOTION * system from SIEMENS *. It is secure thanks to 3 levels of access and is equipped with the Audit trail system for production monitoring. With a flexible design, it is made up of independent sealing modules, fixed to a one-piece welded stainless steel frame. The sealing modules are completely independent and can be easily removed to be modified or replaced depending on the production to be carried out. It can also be pre-equipped with several additional sealing modules such as double longitudinal sealing, sealing tools for empty bags, etc... Designed for high production, it is designed to receive multiple additional control systems in order to be integrated into a continuous production line. Adjustable bag length - from 70mm Adjustable bag widths - from 50mm to 320mm or 450mm Multitrack possible Product height - up to 25mm Compatibility with materials: - Majority of heat sealable materials Types of transverse sealing (They can also be pre-equipped with several sealing systems. Interchangeable sealing modules) - Square movement / Rotary movement / Mold to shape. Longitudinal sealing type - By heated wheels (Interchangeable modules Double longitudinal sealing possible) Type of cross section: - By scissor blades Type of longitudinal splitting (Multitracks): - By circular knives Loading type - Tape, push tabs or bottom material
