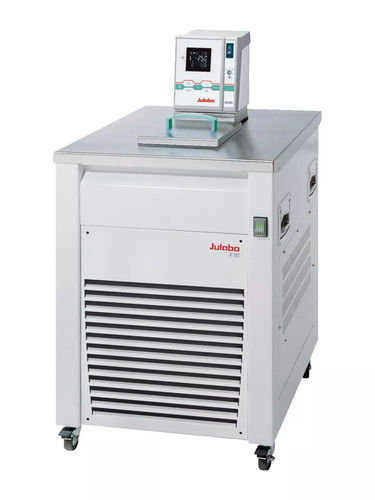

Cryostatic bath for the pharmaceutical industry F81-ME

ultra-low-temperaturecirculatorfloor-standing

The ultra-low refrigerated circulators of the TopTech series are equipped with a dual-stage cascade refrigeration system for continuous operation of internal and external temperature applications. Models with ME circulator Heated bath cover plate to prevent condensation or ice build-up Pressure pump up to 0.45 bar, electronically adjustable in steps ACC Active Cooling Control across the entire temperature range Compact design Note: FP models feature an energy-saving proportional cooling control. Product Features PID3 cascade temperature control RS232 interface for online communication Integrated programmer for 10 program steps VFD COMFORT DISPLAY Keypad for setpoints, warning/safety values and menu functions ATC3 3-Point-Calibration Pt100 External sensor connection for measurement and control SMART PUMP, electronically adjustable pump stages Adjustable high temperature cut-out, visible via display Active Cooling Control Unique early warning system for low liquid level F81-ME Benefits For flammable bath fluid Classification III (FL) according to DIN 12876-1 ATC3. Calibration. ‘Absolute Temperature Calibration’ for compensating a physically caused temperature difference, 3-point calibration. 100 % Cooling capacity ‘Active Cooling Control’ for cooling available throughout the entire working temperature range, fast cool-down even at higher temperatures Early warning system for high/low temperature limits Maximum safety for applications, optical and audible alarm, convertible to automated cut-off function
