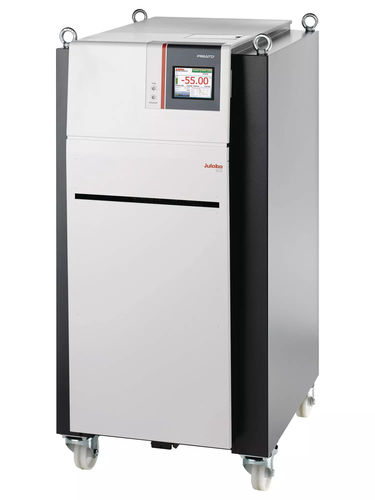

Flow control system PRESTO W55

pressuretemperaturelaboratory

The powerful W55 regulates temperatures with high precision and convinces with faster cool-down and heat-up times. It is ideal for use in large external applications such as reactor temperature control, material stress testing or temperature simulation. The highly dynamic temperature control systems PRESTO are designed for high-precision temperature control for a wide range of applications such as reactor vessels or material stress tests. Moreover, by using efficient components, the process systems can compensate exothermic and endothermic reactions exceptionally fast. Permanent internal monitoring and self-lubricating pumps ensure a long life-time. In addition, numerous interfaces offer many remote control possibilities across networks or for integration into higher-level control systems. Product Features Temperature stability ±0.05 °C ... ±0.1 °C Analog connections, RS485, Profibus DP (accessory) Second external Pt100 sensor connection (accessory) Built-in 5.7’’ industrial color touchscreen Alarm output External Pt100 sensor connection Cooling capacity up to 15 kW Heating capacity up to 15 kW Pump pressure up to 3 bar, max. flow rate 80 l/min PRESTO W55 Benefits Touch display. Perfect operation. With the touch display, the user always has an overview of all values and functions. The intuitive and multilingual menu structure enables perfect control. Convenience for several users Administrator level for customizing instrument settings, user levels with limited permissions for fast and safe defined access, password protection, all levels adjustable
